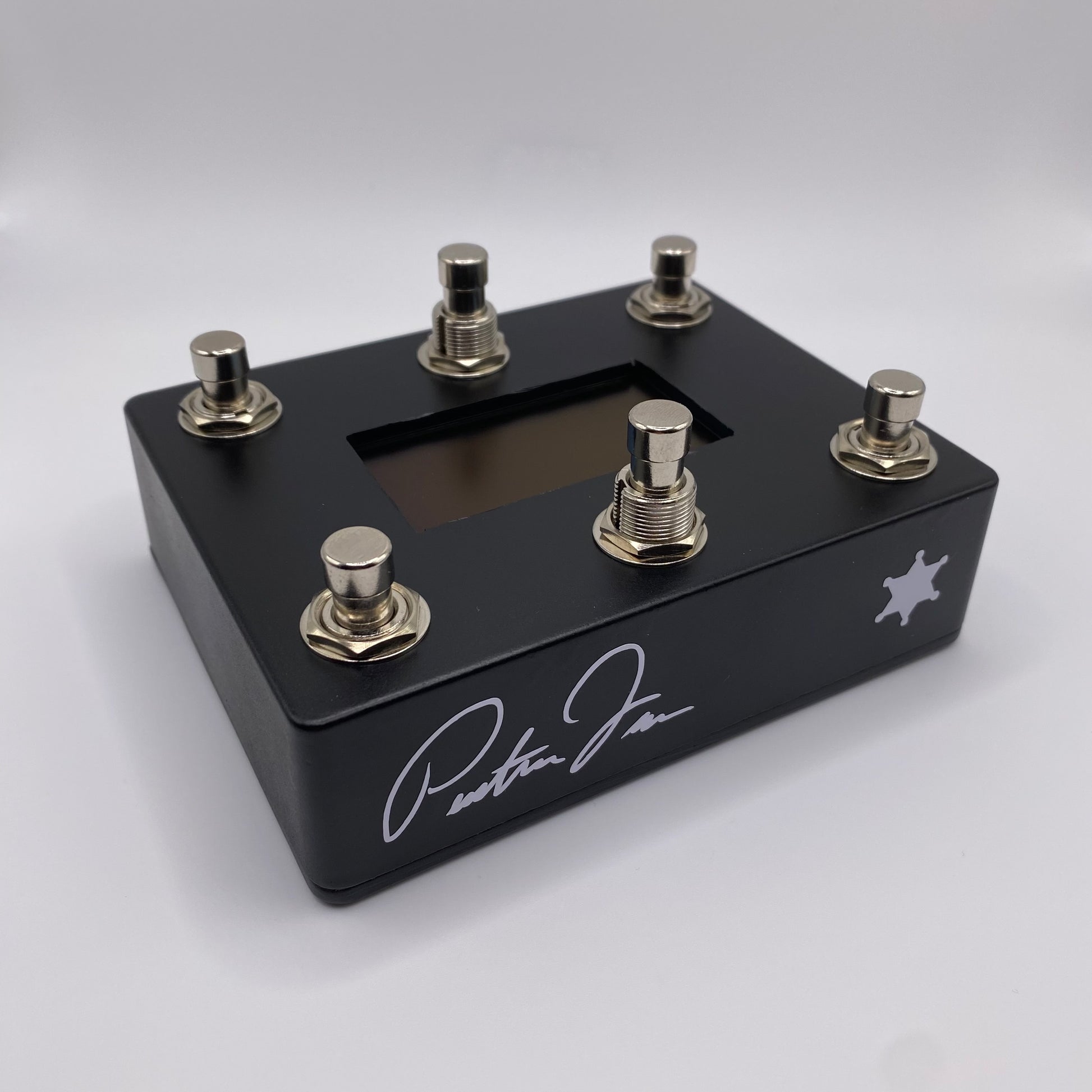

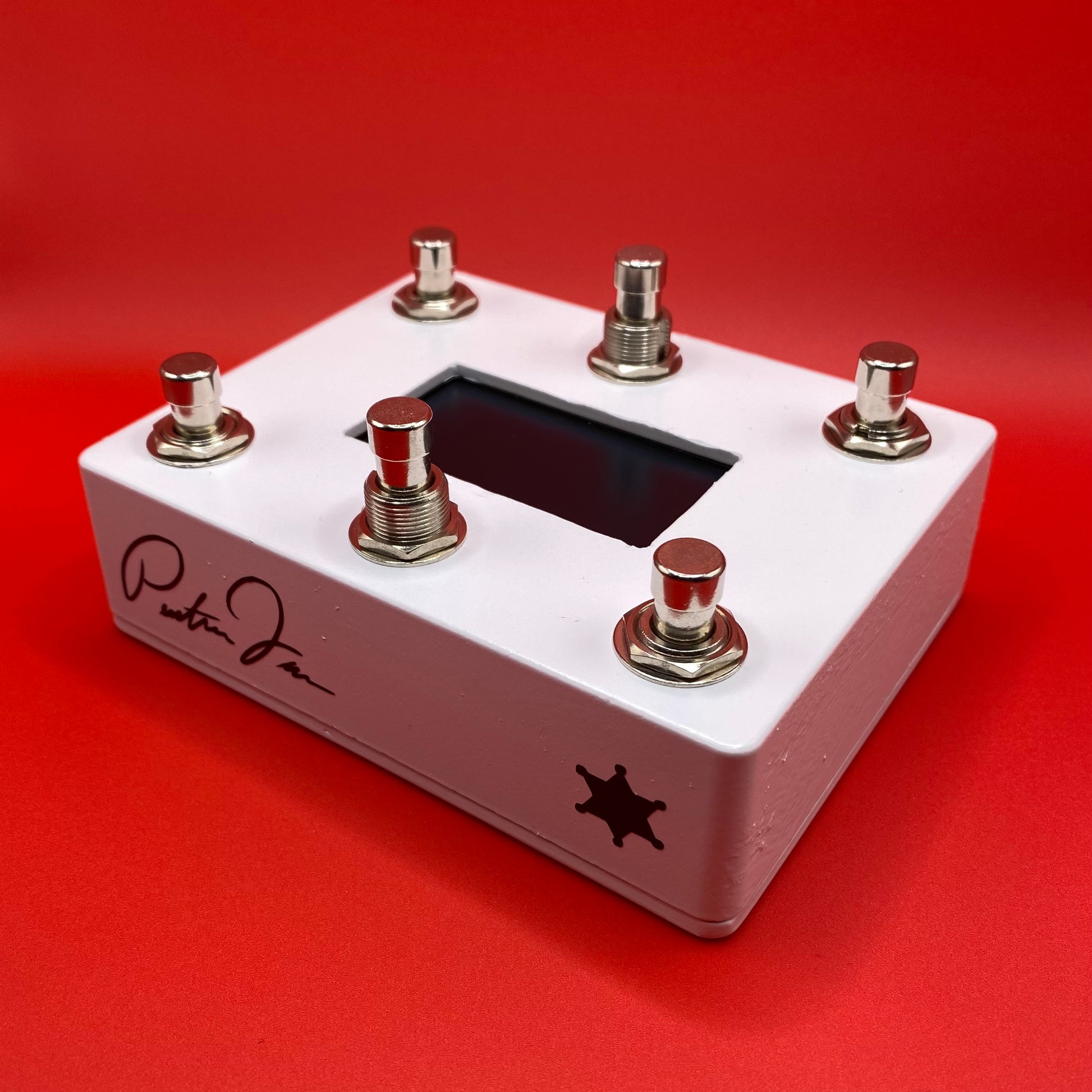

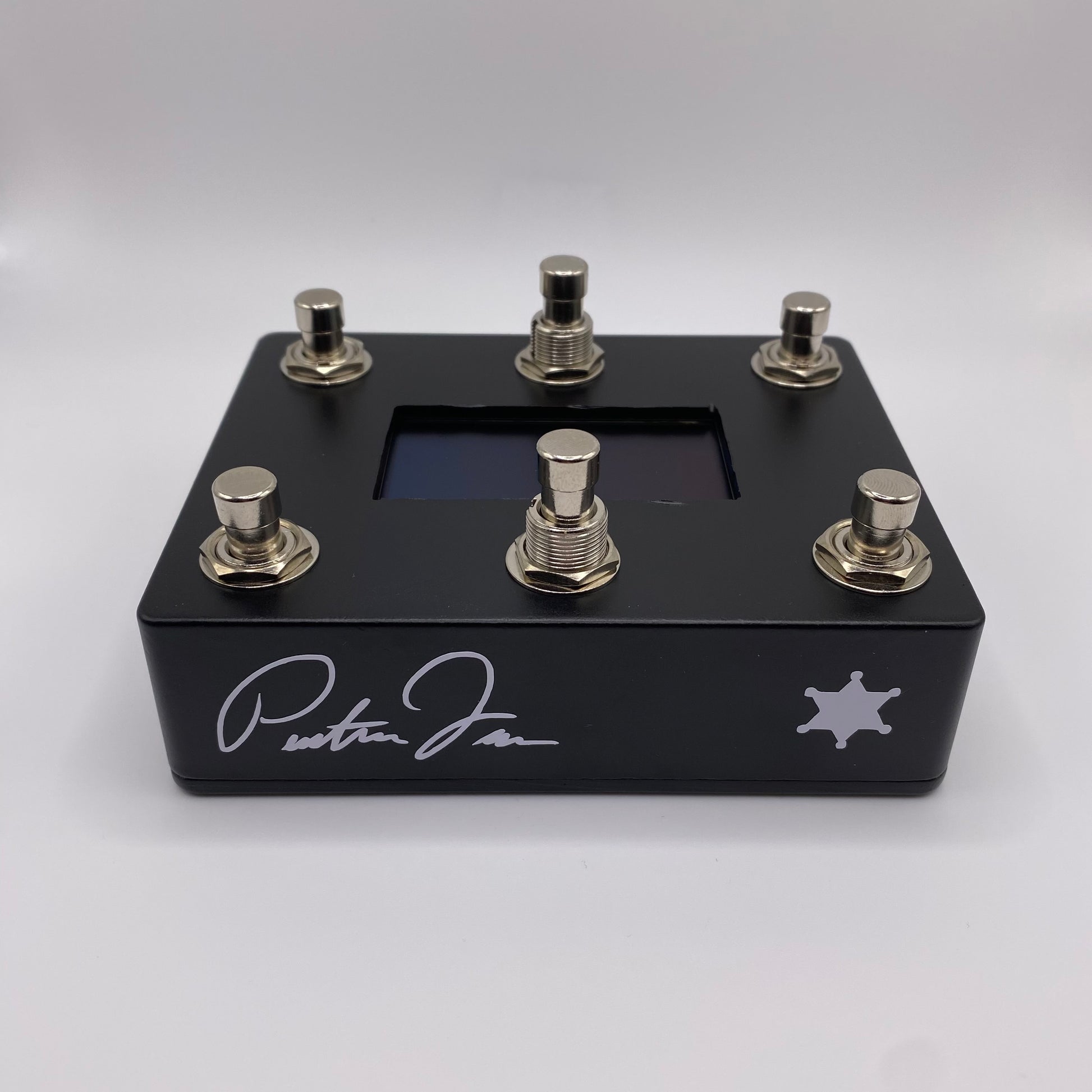

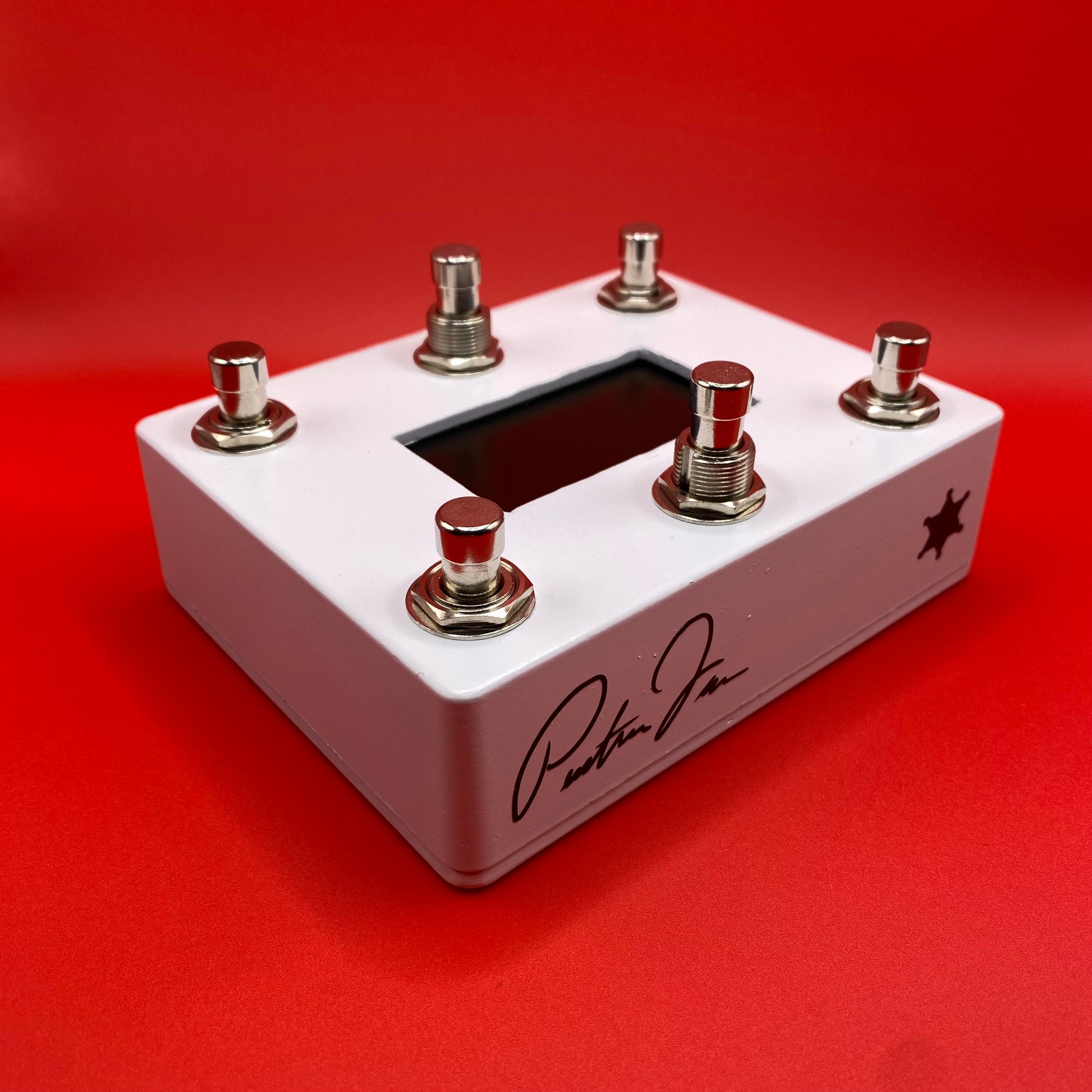

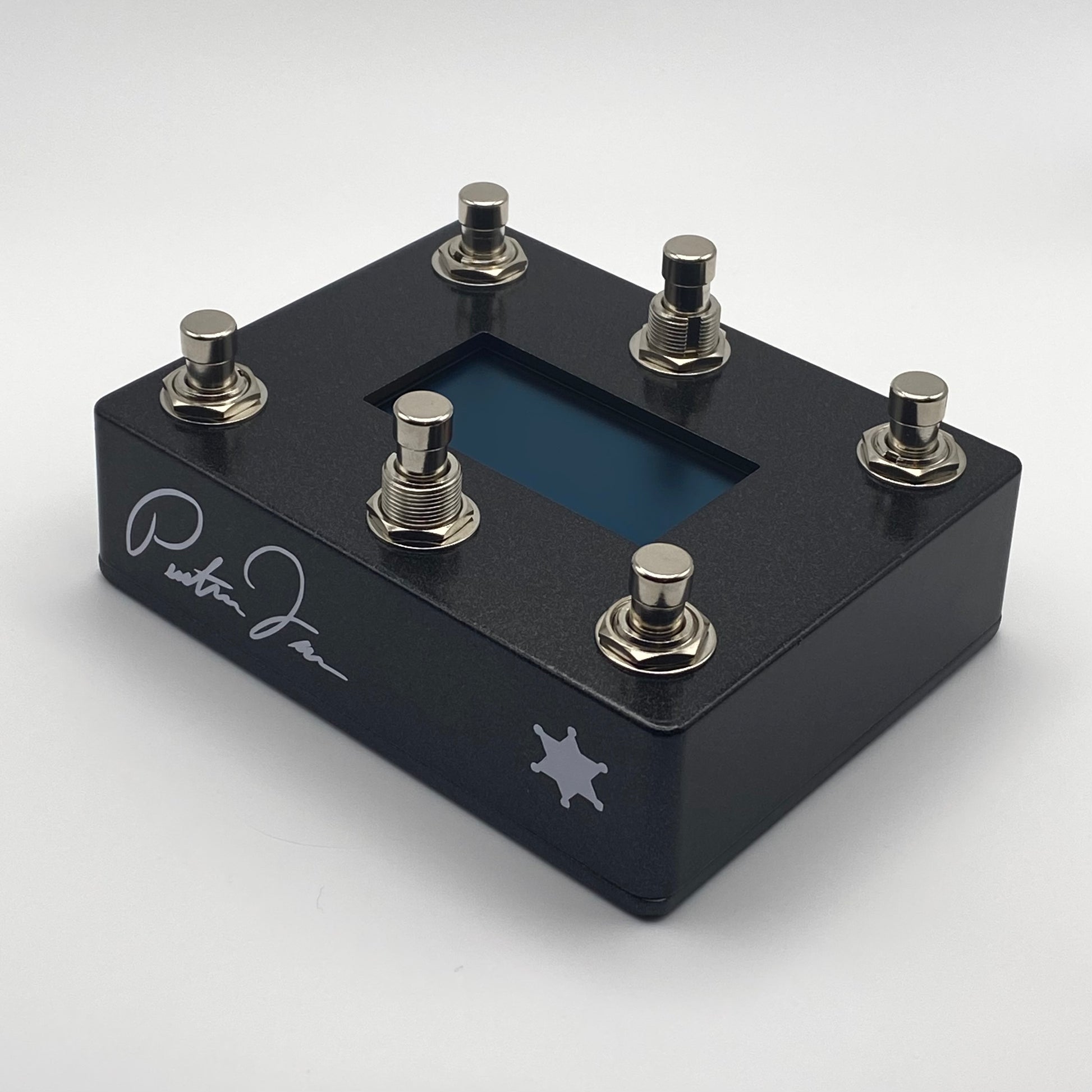

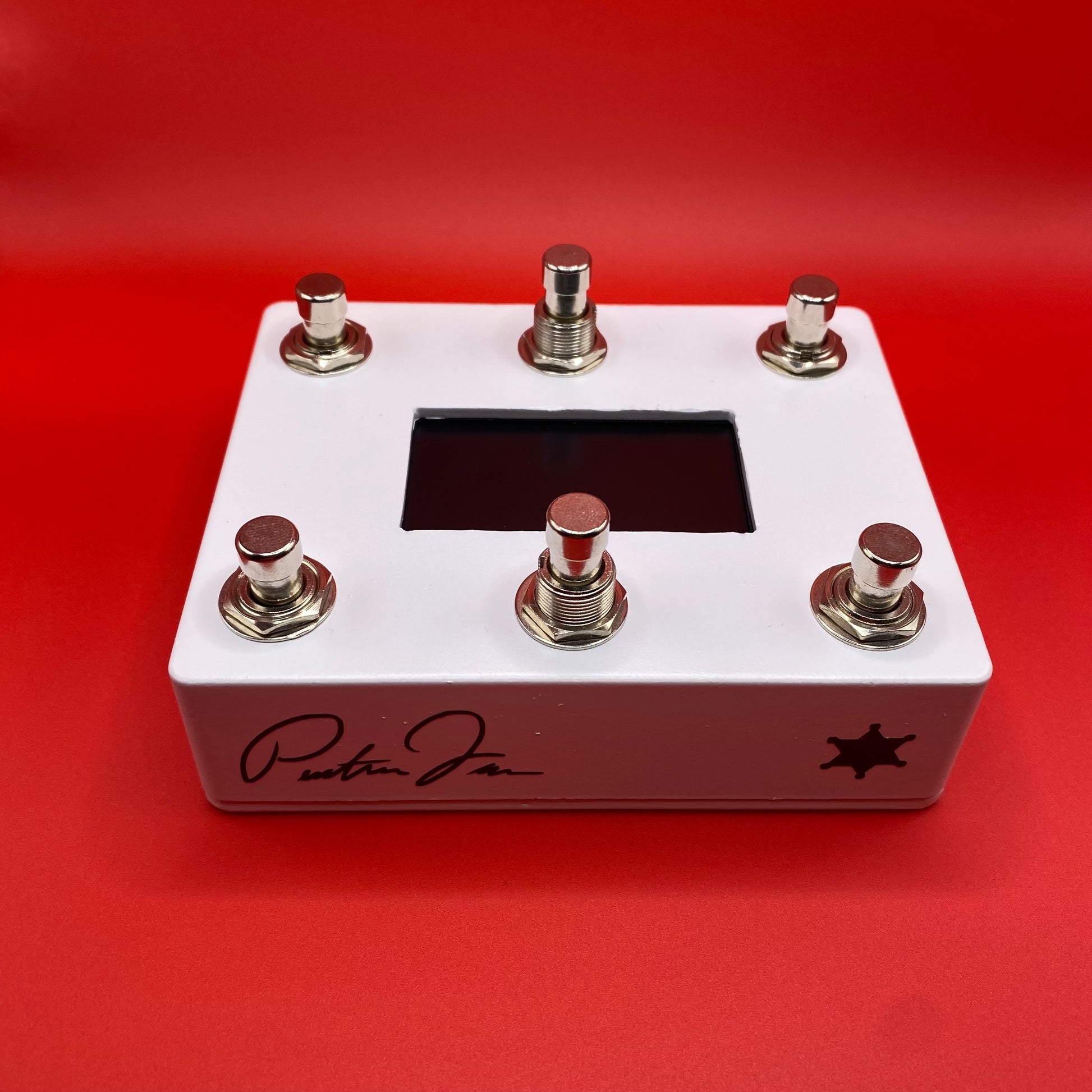

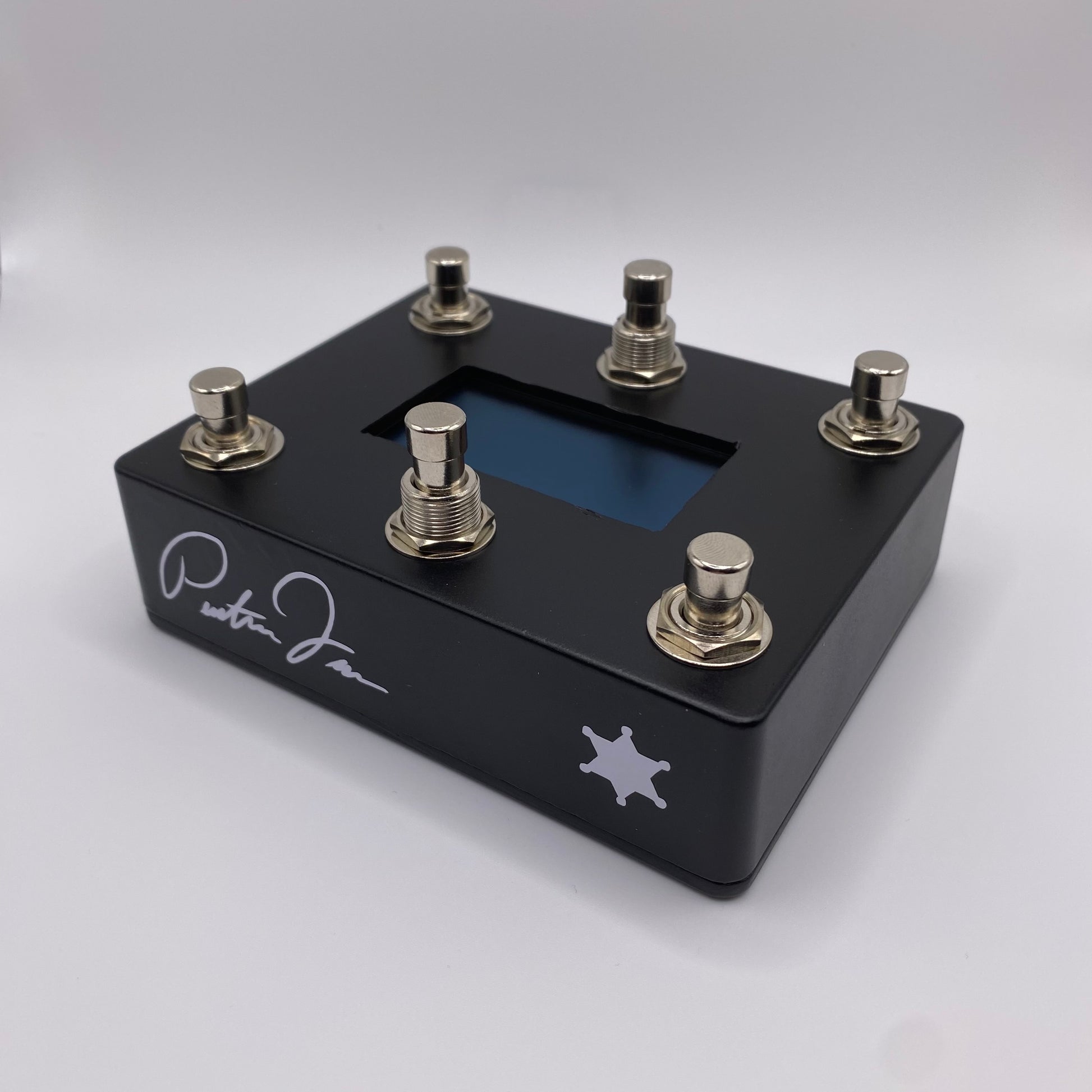

The Sheriff Jr is a pre-programed MIDI controller for the HX Stomp and Line 6 Helix pedals.

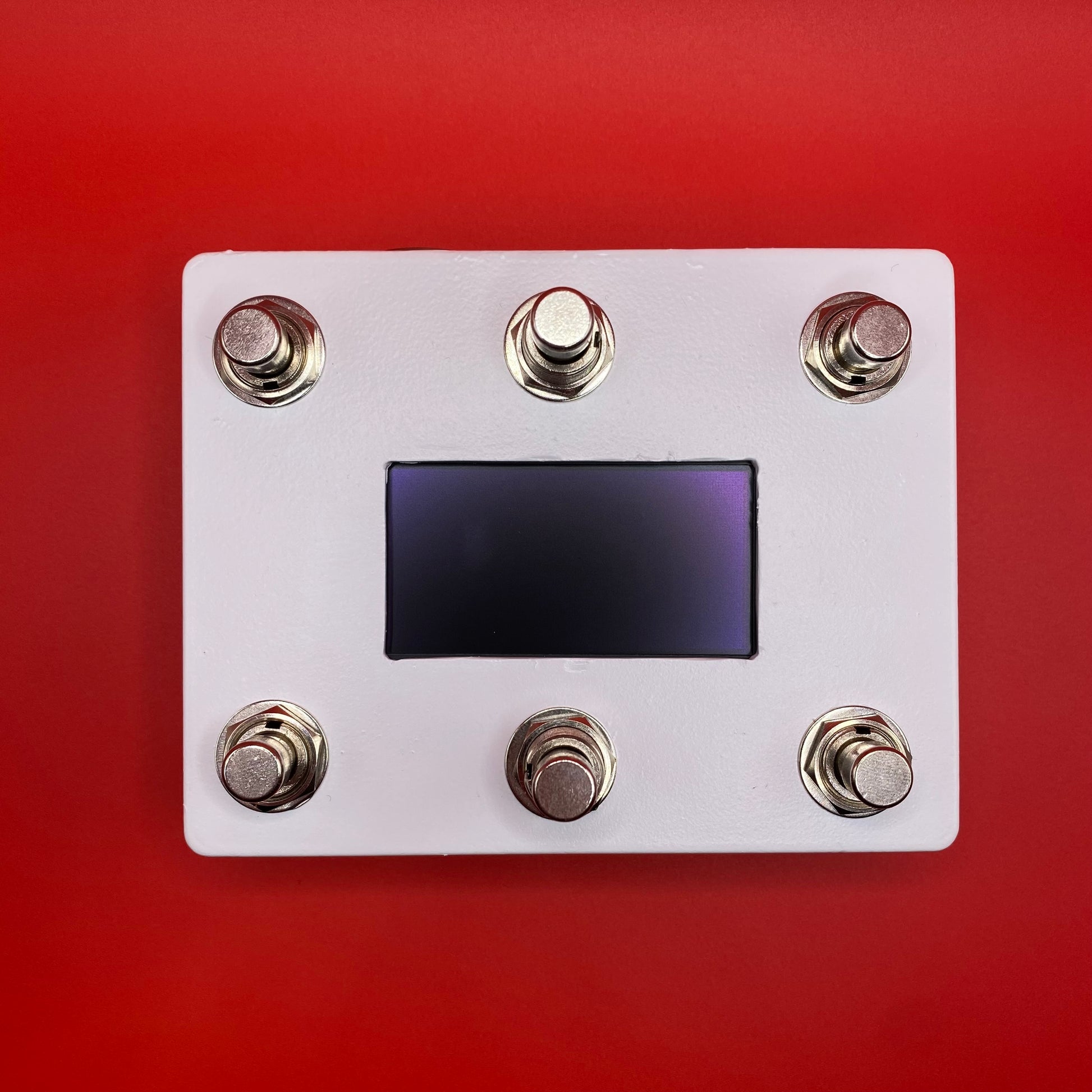

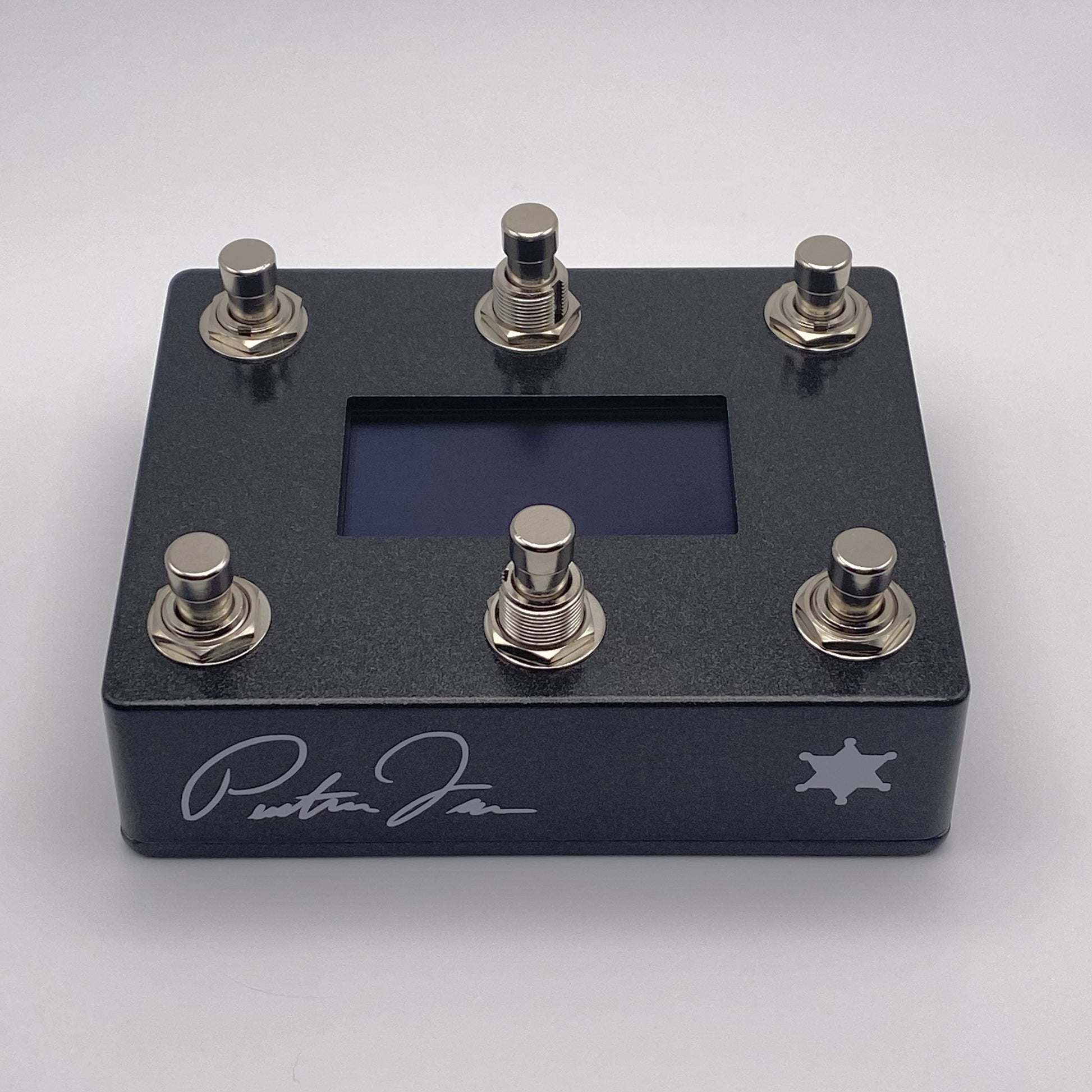

6 soft touch foot switches and a 2.4” OLED screen pair together to bring full customized MIDI Functionality to your pedal board.
If you have and HX Stomp or a Helix family pedal, The Sheriff Jr is out of the box to function as (from left to right, as the switches are shown):
Snap shot 1 | Snap shot 2 | Snap shot 3
Footswitch 4 | Footswitch 5 | Tap/Tune
(Tap is single press, hold for .75 seconds to get to the tuner page)
Combination Press:
Snap 1 + Snap 2 = Preset Down
Snap 2 + Snap 3 = Preset Up
Foot Switch 4 + 5 = Page View Right
Foot Switch 5 + Tap/Tune = Secondary Page
Secondary Page: this is another page of options for the 6 buttons inside The Sheriff Jr. This can be any function or layout you want, whether it be buttons to control the looper, PC channels to recall your favorite preset anywhere on the stomp or just a different button layout, say snapshots 1-4 if you have the Stomp XL.

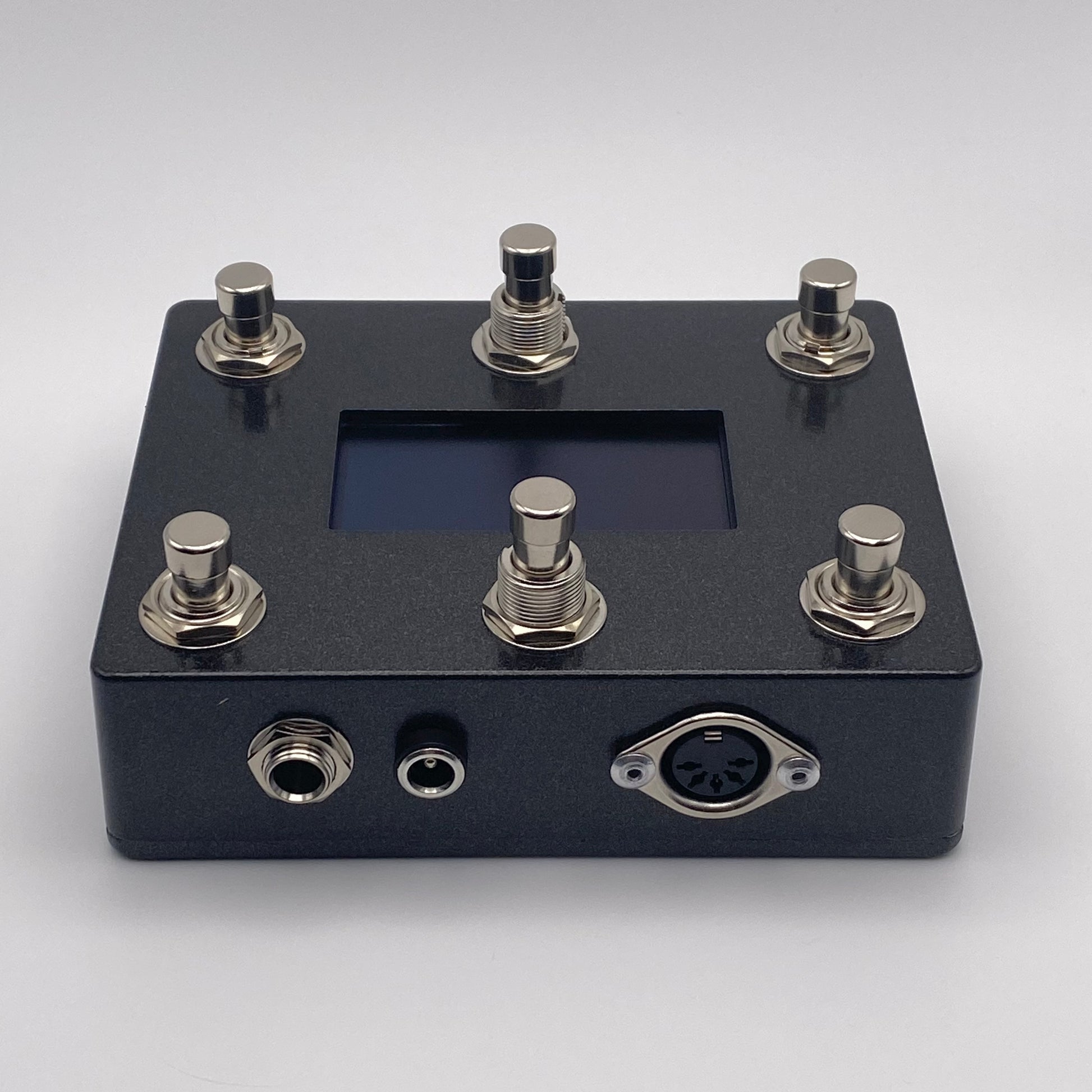

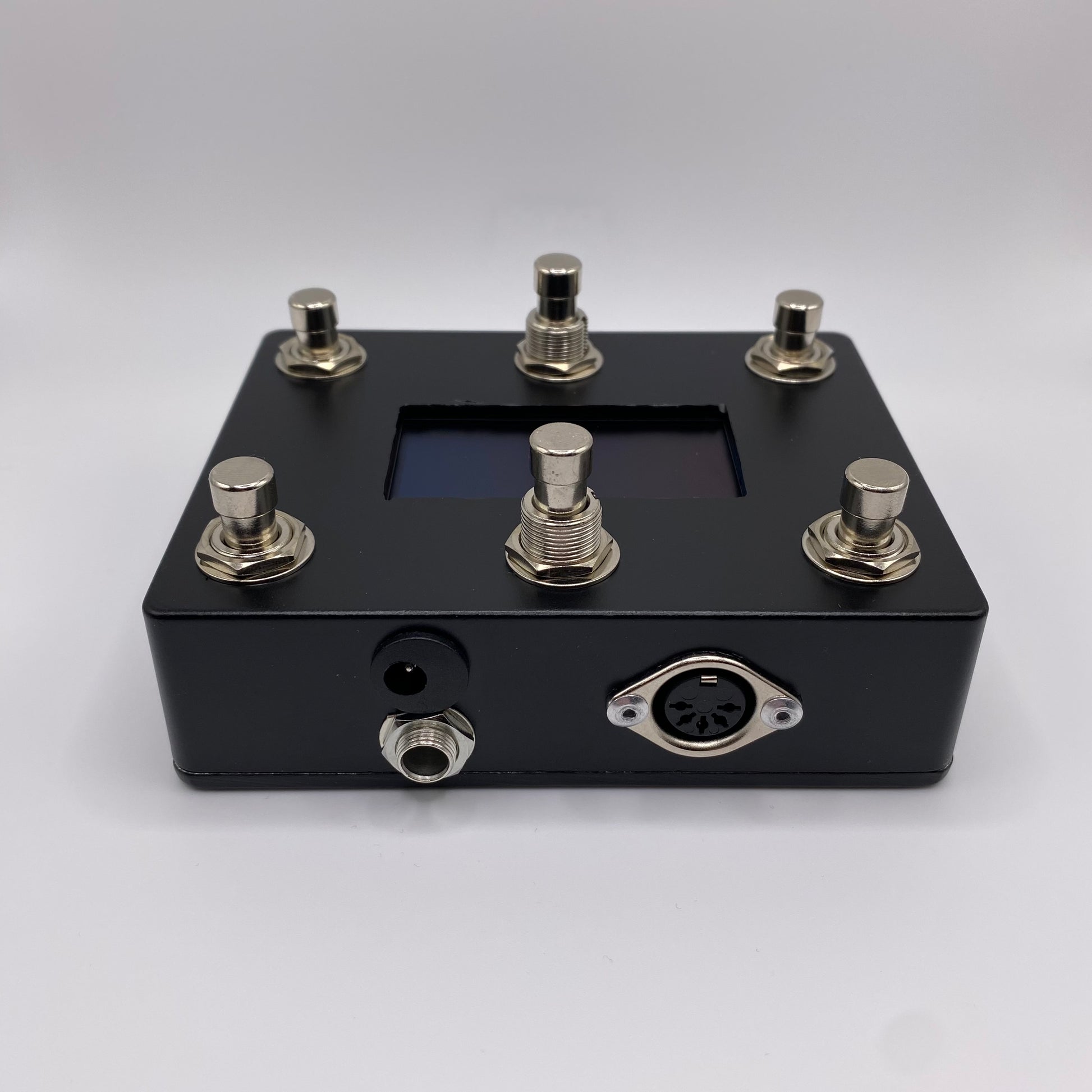

The expression jack allows you to use a TRS cable to plug in any momentary two button switcher. This allows you to use both a two button switcher and expression pedals with the HX Stomp and Helix products at the same time! This can also be configured as extra preset switches if you don’t use the HX Stomp or if you would like to recall specific presets. Just let us know at checkout if you want them as PC commands. The default is set to control footswitches 4 and 5 for HX Stomp, 7 and 8 for the XL.
4.7 x 3.7 1.34 inches.
Please allow 3-5 days for build time.
With this being said, this is also a customizable pedal upon order, so if you want a different layout for out of the box/plug and play function, shoot us a message at check out of before hand to set up a custom layout free of charge!
